FNAC-301D Anesthesia Machine

Anesthesia Machine Supplier You Can Trust

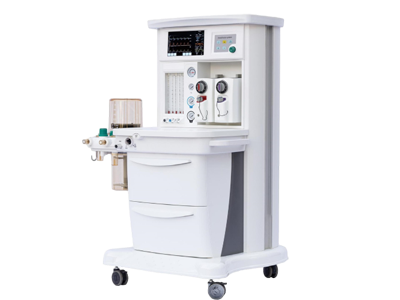

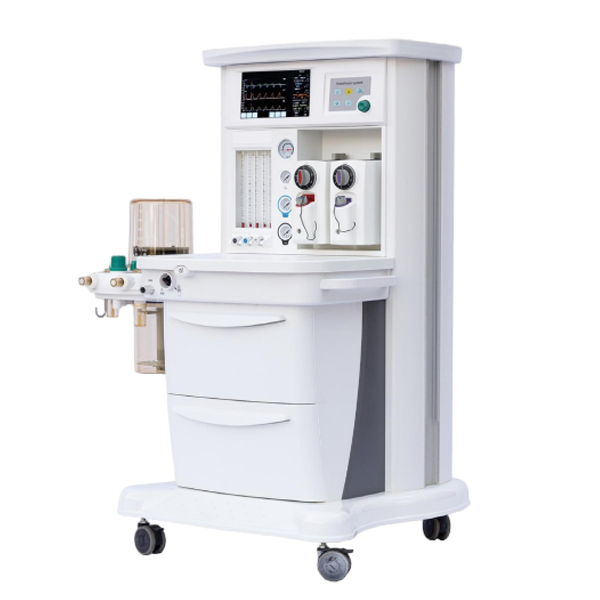

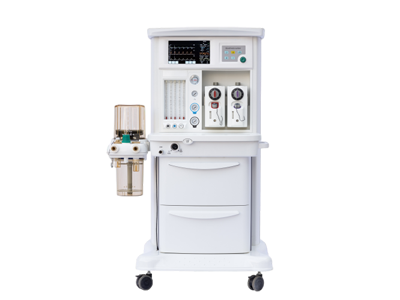

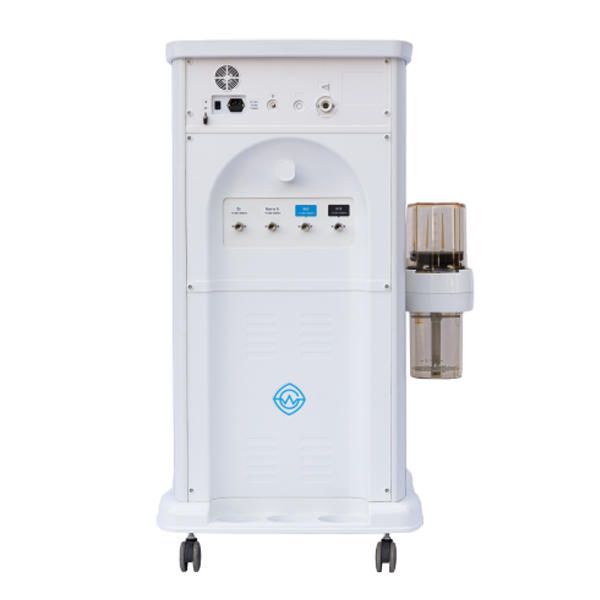

FNAC-301D Anesthesia Machine-1

Product Advantage:

1: 1.Integrated breathing circuit with APL valve, excellent tightness.
2: Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
3: Applied with 2 high-precision vaporizers. (Selectatec).
4: 10.1 inch LCD touch screen.
5: Real-time detection for loops, Paw, BPM, VT and compliance.
6: Comprehensive monitoring capabilities include ventilation parameters monitoring,preset parameters,alarm indication and breathing waveform monitoring.
7: Head light.
8: Altitude compensation function.
9: ACGO available to connect with T/Bain circuit for open operation.
10: Yoke system with up to 3 back up cylinders (A type with 11L size) (Optional).

Main parameters:

1: Gas configuration: O2,N2O,Air
2: Pipeline input range: 280-600Kpa
3: Backup battery run-time: ≥180 mins
4: Patient range: Adult/Pediatric
5: Modes of Ventilation:VCV: Volume Controlled Ventilation
A/C: Assist/Control Ventilation SIMV: Synchronized Intermittent Mandatory Ventilation Manual PCV: Pressure Control Ventilation
PSV: Pressure Support Ventilation STAND-BY"
6: Working type: Electronic control, pneumatic driven
7: Tidal Volume range: 20-1500ml
8: Pressure range: 5-60cmH2O
9: Rispriation rate range: 1-100bpm(1-40bpm under SIMV)
10: I:E range: 4:1-1:8
11: Ptrigger range: -20-20cmH2O(based on PEEP)
12: Flow trigger: 0-15L
13: Minute volume range: ＞18L/Min
14: SIGH range: 0-5/100
15: Hypoxic guard system: N2O cut-off Valve, O2 concentration＞25%
16: Fresh gas compensation: 25-75L/min
17: Volume of CO2 absorber: 2L
18: Flow meter: 5 tubes, Cascade 0.1-15L/min O2; 0.1-15L/min N2O;
0.1-15L/min air
19: Vaporizer: 2 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane)
20: Monitoring Display graphics: Waveforms of P-T, F-T,V-T, loops of P-V, V-F, F-P Types: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2"
21: Alarm Limits Audio/Visual: No tidal volume, MV, Paw, FiO2 limitation O2,Air failure, AC power failure, Battery low.
22: PEEP:Type: Integrated, Electronic control Range: OFF, 3-30cmH2O
23: Optional AGSS Suction Unit Communication Interface
