Application Scenarios:

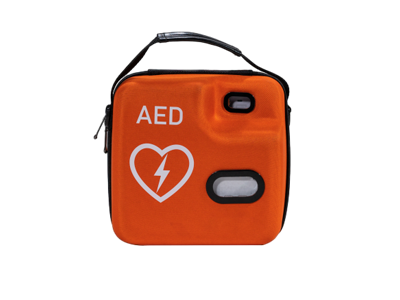

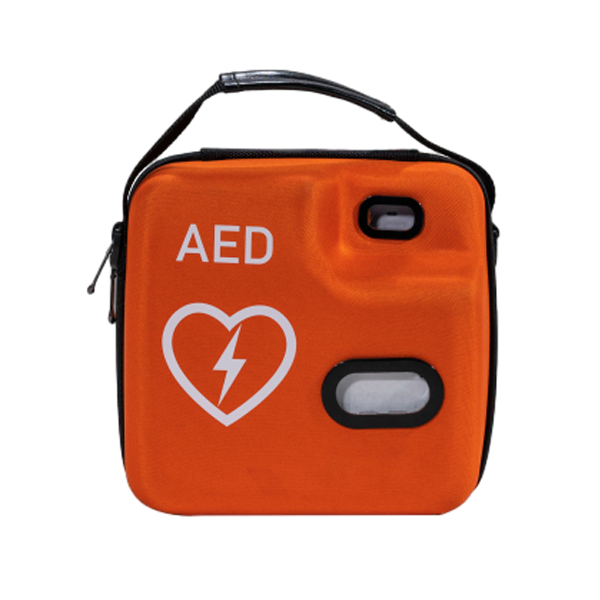

A cardiac defibrillator (AED) is an emergency medical device used to deal with sudden cardiac arrest. It analyzes the patient's heart rhythm and restores the heart's normal rhythm with an electric shock if needed

Products advantage:

Low-energy defibrillation technology

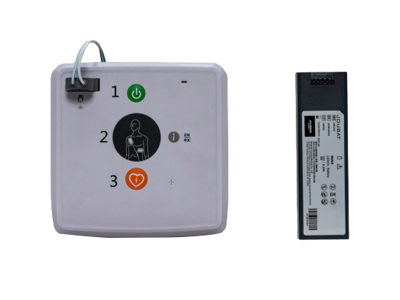

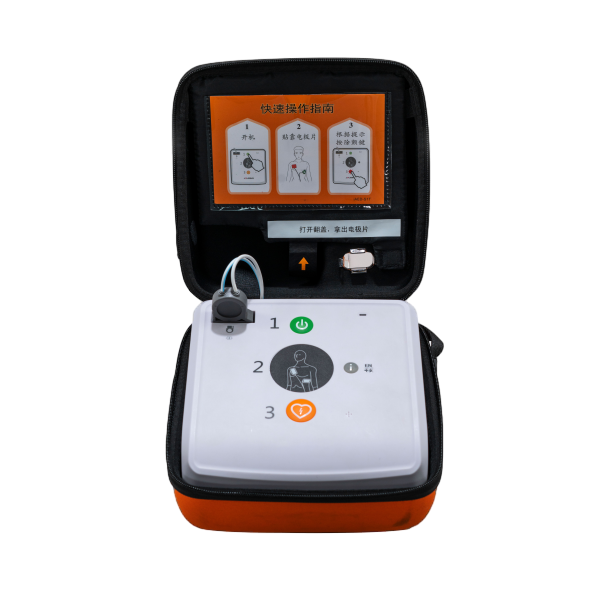

Easy three-step operation
Accurate heart rhythm identification
Portable, stable and durable

Technical Specifications:

Defibrillator
Waveform ：    Biphasic truncated exponential.
Waveform parameters are
automatically adjusted to patients’ impedances.
Energy ：        150 J nominal (±15%) delivered into a 50 ohm load. When the system detects impedance ≤ 20Ω or ≥ 200Ω, device will not deliver a shock.
Charge time from shock-advised：         ≤7s with a new battery
Pads
Pads type：        Disposable, pre-gelled self-adhesive defibrillation pads, latex free
Cable Length：        120cm±12cm
Active gelsurface area：        100cm²±10cm²each
Pads shelf life：        2 years from date of manufacture when stored and maintained according to directions provided in this manual.
Battery
Battery type：        12VDC,4.2 Ah, LiMnO₂battery
Battery capacity：        New battery≥200 shocks (20℃±2℃)
New battery≥100 shocks (0℃±2℃).
Shelf life：        5 years from date of manufacture
When stored and maintained according to directions provided in this manual.
Standby life(after insertion)：        5 years when stored and maintained according to directions provided in this manual.
Physical
Size：        198mm(L)x197mm (W)x67mm (H)
Weight(include battery and pads)：        ≤2kg
Environmental
Temperature and relative humidity：        Operating(with battery and pads installed)
0℃~50℃,5%~95% RH(non-condensing)
Standby (with battery and pads installed)
5℃~35℃,5%~95% RH(non-condensing)
Storage/shipping(with battery and pads )
-30℃~65℃for up to 24 hours, 5%~95%
RH(non-condensing)
Altitude：        0 to 15000 feet
Sealing：        IP54
Vibration：        Operating: meets EN1789 random, road ambulance Standby: meets EN1789 swept sine, road ambulance
shock/drop：        Withstands 1 meter drop to any edge, corner, or surface .
EMC：        Refer to Annex G for EMC Information
