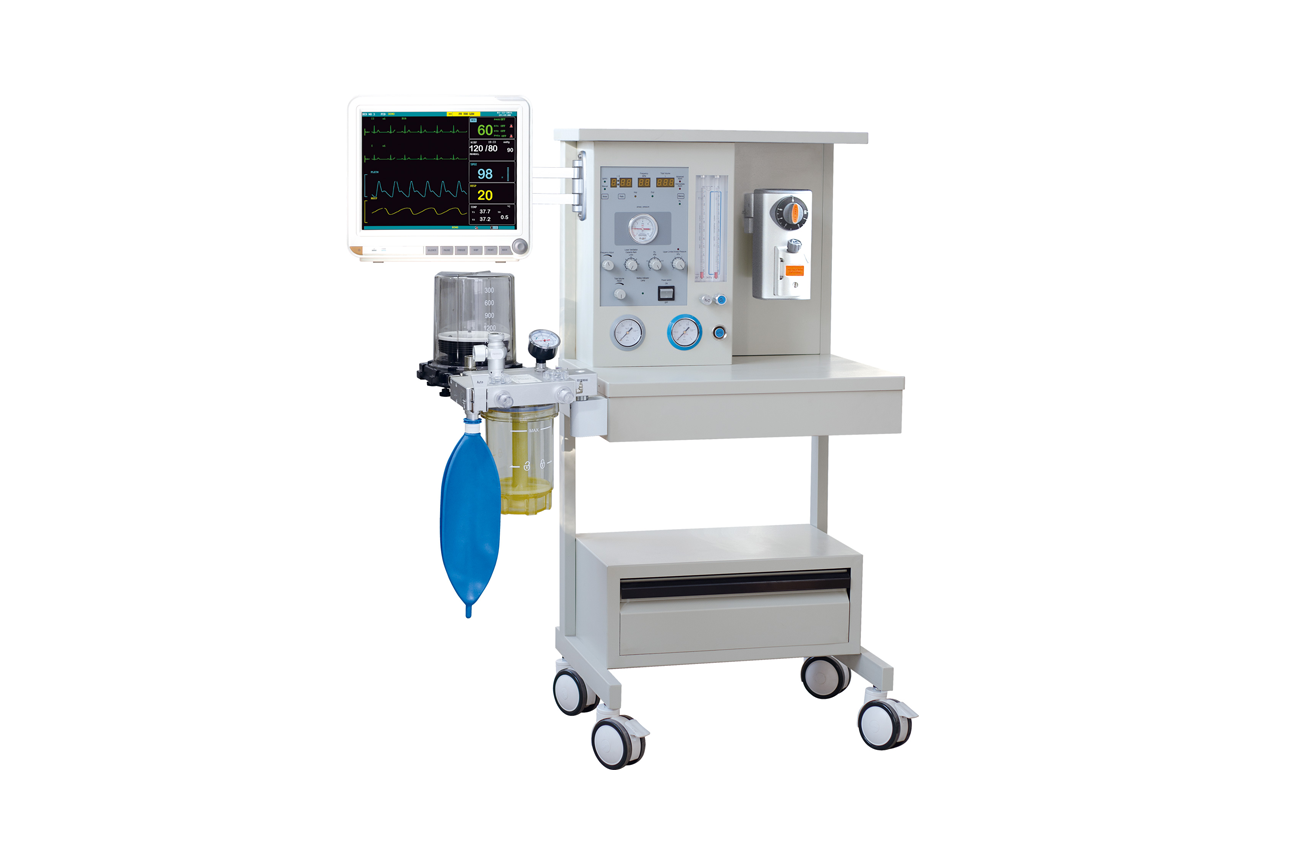

FNAC-201A Anesthesia Machine
Anesthesia Machine Supplier You Can Trust
Product Advantage:
1: Integrated breathing circuit with APL valve, excellent tightness.
2: Replacing drive bellow is NOT required when operating adult/pediatric anesthesia.
3: Applied with 1 high-precision vaporizers. (Selectatec).
4: 10.1 inch screen.
5: Real-time detection for loops, Paw, BPM, VT and compliance.
6: Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring.
7: ACGO available to connect with T/Bain circuit for open operation (Optional).
Main parameters:
1: Gas configuration: O2,N2O,Air(Optional)
2: Pipeline input range: 280-600Kpa(40-85psi)
3: Patient range: Audlt/Pediatric
"4: Modes of Ventilation:
VCV (Volume Control Ventilation)
SIMV (Synchronized Intermittent Mandatory Ventilation)
Manual STAND-BY A/C (Assist/Control)"
5: Working type: Electronic control, pneumatic driven
6: Tidal Volume range: 20-1500ml
7: Pressure range: 5-60cmH2O
8: I:E range: 4:1-1:8
9: Ptrigger range: -20-0cmH2O
10: Minute volume rage: ＞18L/Min
11: SIGH range: 0-5/100
12: Hypoxic guard system: N2O cut-off Valve, O2 concentration＞25%
13: O2 Flush: 25-75L/min
14: Flow meter: 4 tubes, Cascade 0-15L/min O2; 0-15L/min N2O; 0-15L/min air (Optional)
15: Volume for CO2 absorber: 2L
16: Vaporizer: 1 Selectetac, maximum 2 mounts;(Isoflurane/Enflurane/Sevoflurane/Halothane)
17: Monitoring: VT,MV,Pmax,Pmean,Lung compliance,Freq,FiO2(Optional),ETCO2(Optional)
"18: Alarm Limits Audio/Visual: No tidal volume,MV,Paw,FiO2(Optional),Air failure, AC power failure, Battery low"
"19: Optional features ACGO ( Auxiliary Common Gas Outlet) Yoke system(Pin-index) Support 11L cylinder O2,N2O
AGSS (Anesthetic Gas Scavenging Systems)"
Package size/weight: | 870*940*1420mm; GW: 130kg |
