Application Scenarios:

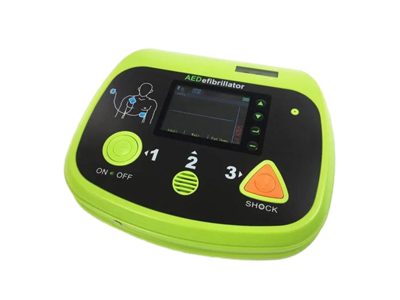

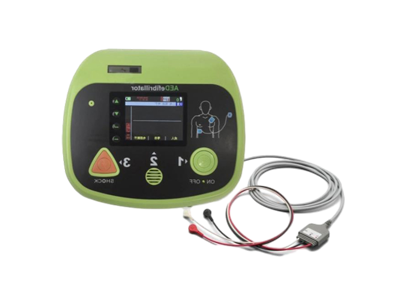

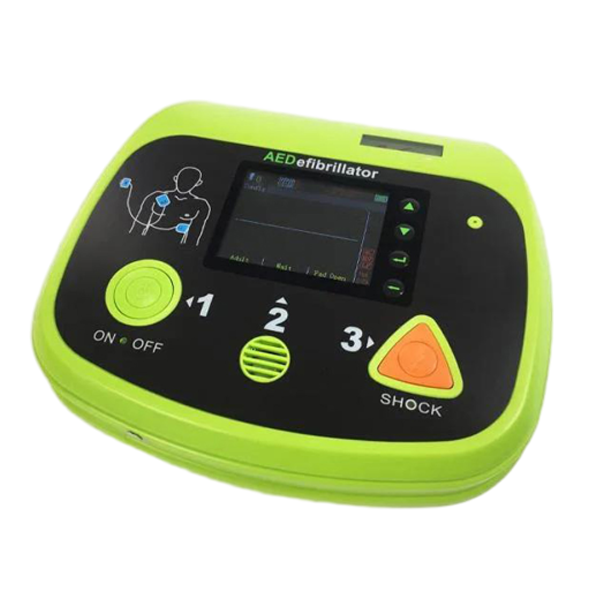

A cardiac defibrillator (AED) is an emergency medical device used to deal with sudden cardiac arrest. It analyzes the patient's heart rhythm and restores the heart's normal rhythm with an electric shock if needed

Products advantage:

Color Screen size: 3.5”
Automatic self-testing
Biphasic energy output
CPR metronome
CPR Coaching(Optional)
Adult and Pediatric defibrillation
Extensive voice and visual prompts for the operator

Technical Specifications:

Defibrillator
Category：    Specification
Output：        Biphasic Truncated exponential
Energy Sequence：        Adult: 150J,150J, 200J；
Pediatric: 50J, 70J, 85J (Default)
Charge Time：        8 sec. to 150J
4 sec. to 50J/100J
10 sec. to 200 J (New battery)
Analysis Time：        9 sec.
The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery：        Less than 20 seconds

The maximum time from the initiation of rhythm analysis to readiness for discharge after 6 shocks：        Less than 25 seconds

The maximum time from initially switching power on to readiness for discharge：        Less than 30 seconds
Audible Prompts：        19 audible prompts
Visual Prompts：        LED prompts;Automatic Self-test
Controls：        Six Buttons: ON/OFF Shock and four software configurable buttons
Output Energy Accuracy：        +15% into any impedance from 25 to 175Ω
Output disabled when the patient impedance is outside limits：        20Ω to 200Ω
Battery
Part No：        CR123A-5x2
Non-rechargeable：        15V d.c.2.8Ah
Capacity：        100 discharges at 200 Joules or 120 discharges at 150 Joules
Shelf Life (25°C15C)：        5 years standby (after installation)
Physical
Dimensions：        225x 200 x 85 mm
Weight：        2.0 kg
Operating Temperature：        0℃ to 40℃
Operating Humidity：        Relative humidity between
30% and 95%(non-condensing)
Storage Temperature(without battery)：        -20℃ to 55℃
Storage Humidity(without battery)：        Up to 93%(non-condensing)
